Introduction:

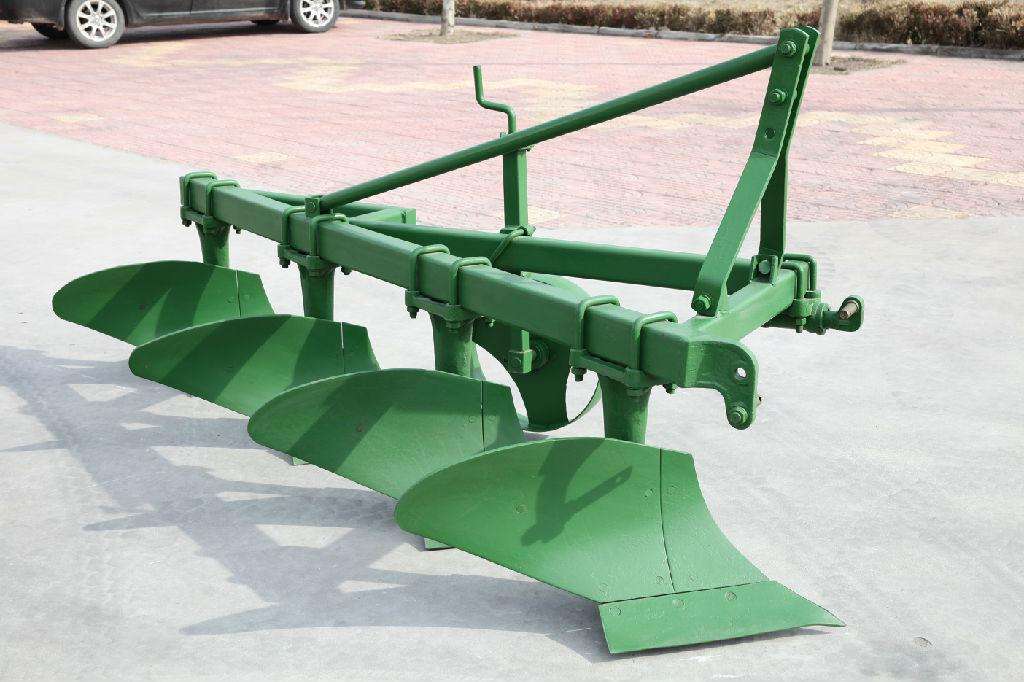

1L series of share plow is a mounted share plow and suitable to cultivate in loam,sandy loam soils of cultivated dry land.It features of simple structure and good performance.After plowed,the land surface smooth and the furrow is narrow with a good pulverization.
Specification:
Model | No of bottoms | Working width(mm) | Working depth(mm) | TotaL weight(kg) | Matched power(hp) | Linkage |
1L-220 | 2 | 400 | 200-250 | 64 | 12 | Three-point mounted |
1L-320 | 3 | 600 | 200-250 | 100 | 25-30 | |
1L-420 | 4 | 800 | 200-250 | 130 | 30 | |
1L-325 | 3 | 750 | 200-250 | 228 | 35 | |
1L-425 | 4 | 1000 | 200-250 | 330 | 50 | |
1L-525 | 5 | 1250 | 200-250 | 435 | 65 | |
1L-330 | 3 | 900 | 220-270 | 248 | 50 | |
1L-430 | 4 | 1200 | 220-270 | 344/260 | 65 | |
1L-530 | 5 | 1500 | 220-270 | 420 | 80 | |
1L-435 | 4 | 1400 | 270-300 | 432 | 65-80 | |
1L-535 | 5 | 1750 | 270-300 | 520 | 80-120 | |
1L-635 | 6 | 2100 | 220-300 | 613 | 100-120 |
